Prima Vertical Bar Railings

PRIMA VERTICAL BAR RAILINGS

Prima Vertical Bar Railings are one of the best selling boundary railing products on the market and are suitable for a wide range of applications including residential and industrial security purposes. Our Prima metal Railings are manufactured using solid or hollow steel infill bars and are extremely tough.

They are available in an extensive choice of designs and can be galvanised and polyester powder coated to any RAL or BS colour.

Standard specification:

Heights: From 600mm to 2.7m high
Panels: Solid steel bars or hollow section, manufactured from either round or square bar
Rails: Solid such as 50x10mm or RHS such as 60x40mm or hollow section channel
Posts: CHS, RHS or RSJs, post centres depending on fence height post generally 2.5 or 2.75m centres
Fixings M12 shear nuts with loose cleats
Finish: Primed and painted, galvanised to BS EN 1461 or galvanised and polyester powder coated to any RAL or BS colour

Technical Specifications

Download complete tech specs PDF for Prima Vertical Bar Railings.

Get a Drawing

Examples of Prima Vertical Bar Railings

Green Play Spec Bow Top

Ball Top Railing Fence

Tubular Bow Top Railings

Square Hollow Pointed Tops

Solid bar Rail

The range includes steel solid bar and hollow in rounded or square form, with a wide selection of finials. If the land surrounding your property or perimeter to be secured has inclines or is stepped then we are also able to offer any of these products with loose cleats or the increasingly popular Prima self-adjusting steel tubular systems which will follow the ground like steel palisade thus accommodating irregular land.

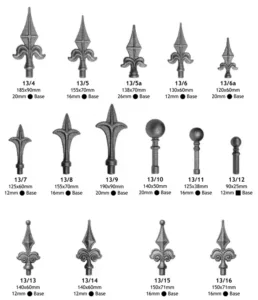

Selection of Popular Railhead Types

QUOTE ME

Ensure you tell us the height and number of metres required. Upload images of the areas and/or site plans, even a hand drawn layout sketch will do.
