Prima Acoustic Fencing

Prima timber acoustic fencing, is an effective fence for noise reduction. There are many sound barriers on the market with absorbent or reflecting qualities. They are suitable for many applications including residential, commercial, transport and industrial settings.

Specifications;

• Height: 2m, 2.4m, 3m, 4m, 4.5m or 5m
• Panels: Timber, Rockwall
• Posts: Timber or RJS Steel
• Rails: 100x50mm
• Infills: 22mm thick butt-jointed with cover strips
• Fixings: Srewed with wedges
• Finish Post galvanised to BS EN 1461, Panels treated to BS 8417:2011
• Noise Reduction: 28 dB* and 32dB*

Technical Specifications

Download complete tech specs PDF for Prima Acoustic Fencing.

Get a Drawing

Fill in this contact form and we will send you the drawing

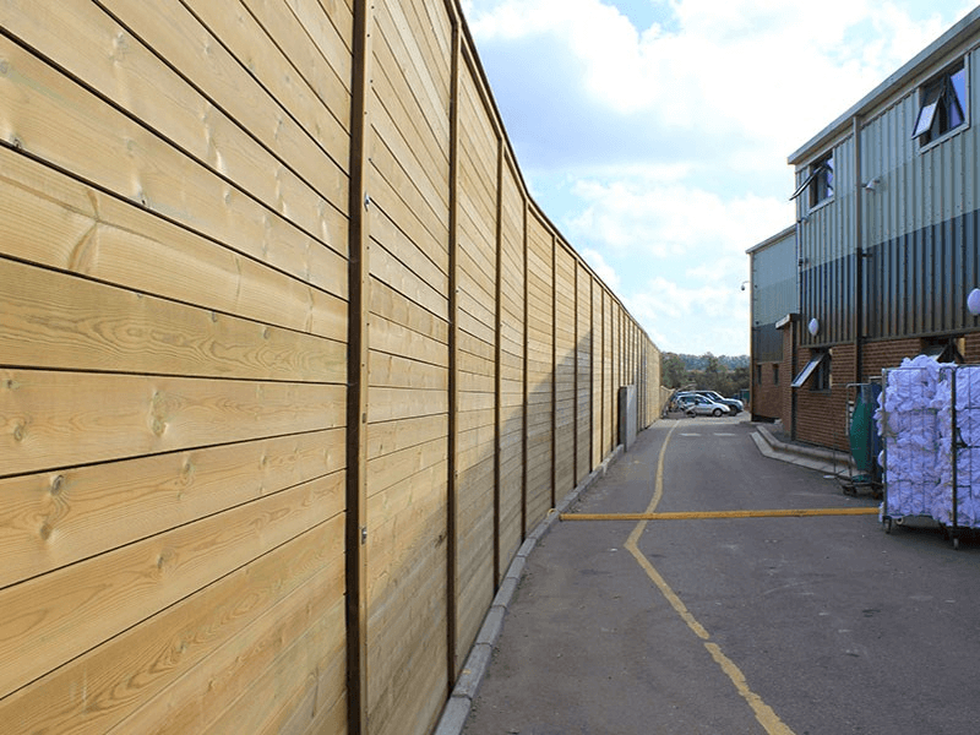

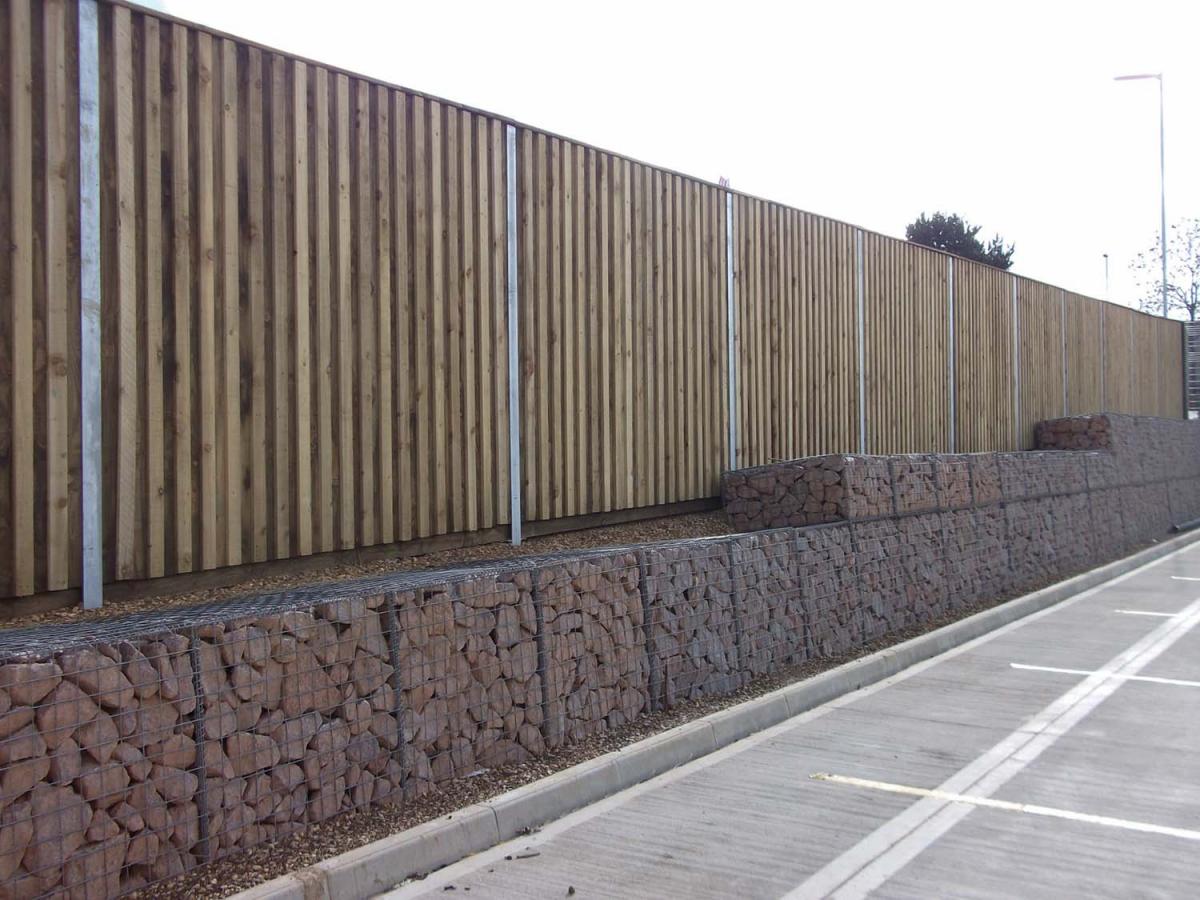

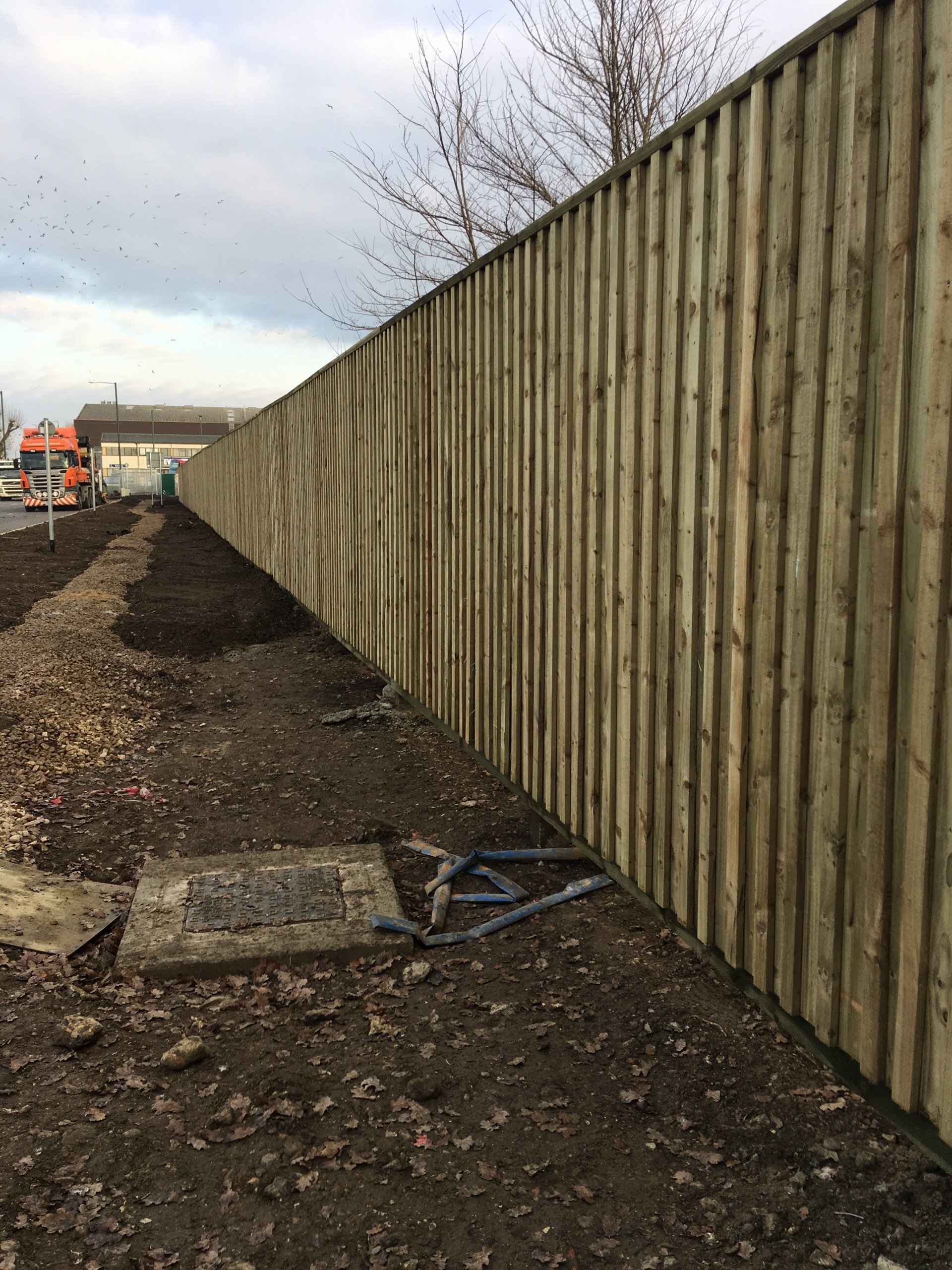

Reflective acoustic fencing is the most popular using timber boards from spruce of other sound absorbing softwoods. The boards are 22mm think and butt jointed with cover strips and a rails to suit. Post are timber up to 2.4m high and steel post over 3m high. Reflective timber acoustic fencing will have a test rating of up to 28 dB* in noise reduction and conform to BS EN 1793-1&2

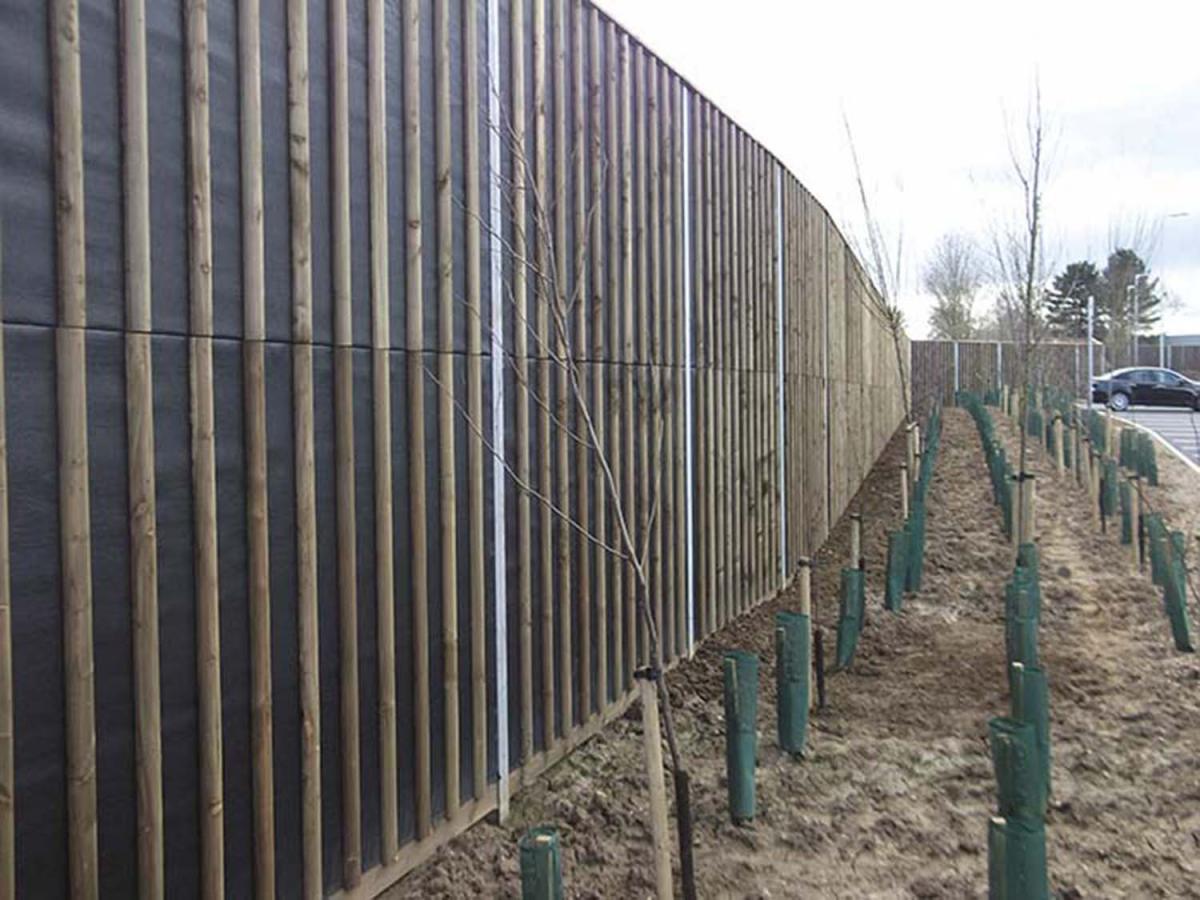

Absorbent timber fences usually have a double-sided quality, one side has timber vertical boards with cover strips and the other side has a geotex protective membrane and rockwool to absorb unwanted noise. Absorbent acoustic fencing will have a test rating of up to 32 dB* in noise reduction and conform to BS EN 1793-2 Category  A3
