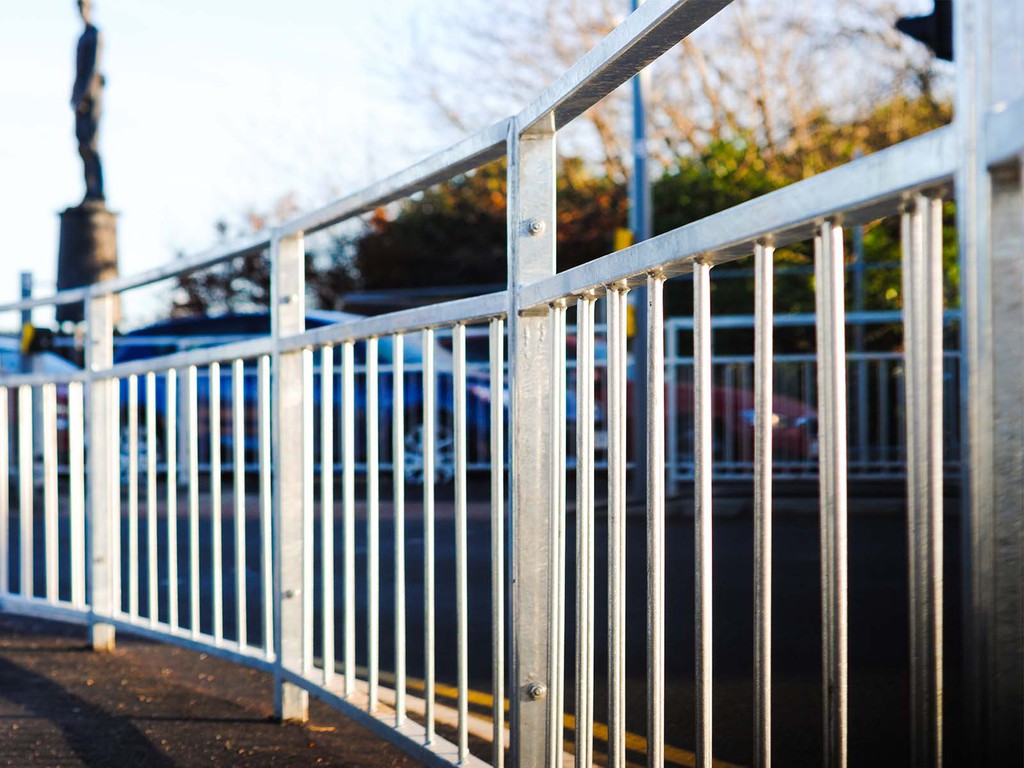

Prima Pedestrian Guardrail

Prima Pedestrian Guardrail is the most common barrier used in areas to protect pedestrians from a roadway. The galvanized barrier comes complete with posts ready to concrete into the ground. Panels bolt together using M10 Hexagon fixings and shear nuts. SPF install Prima Pedestrian Guardrail in many locations including schools for safe access routes and new industrial and housing sites where there is a need to segregate vehicular and pedestrian traffic.

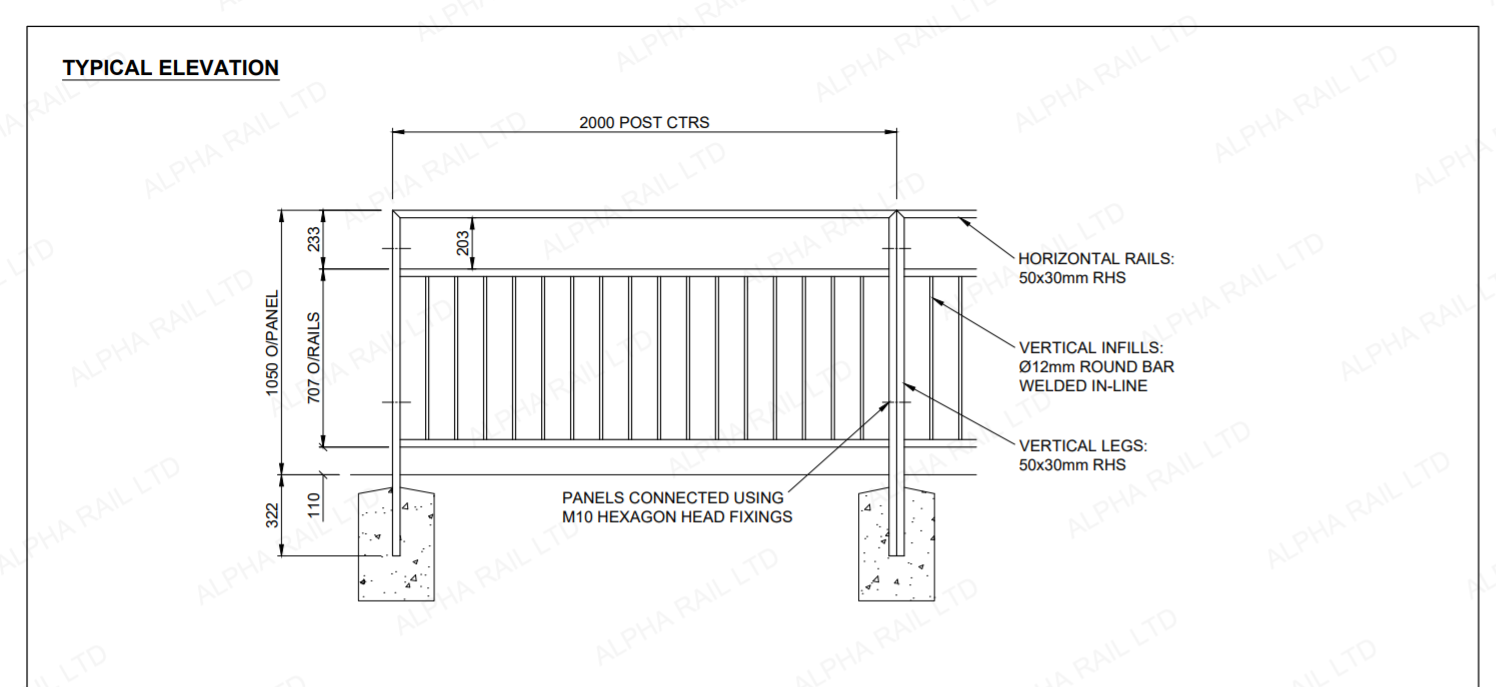

Height: 1.1m
Posts: 50x30mm RHS set at 2m centres
Rails: 3No 50x30mm with top visibility gap of 203mm
Infills: 12mm, impact protection bars can be staggered
Finish: Hot Dip Galvanised to BS EN 1461
