Self Adjusting Railing

Product Catalogue

Get all our PDFs - useful for Surveyors, Engineers, Architects and alike.

Sales & Quotations

Call us now on 01707 663400 for prices & further information.

There are various self adjusting railing systems on the market and Sampson & Partners Fencing always strive to match the right product at the right price without compromising on quality.


Standard specification:

» Heights: From 900mm to 2.4m high

» Panels: hollow section, manufactured from either round or square bar. With bow tops, plain or finials

» Rails: HD rails 55x52r hollow section channel or 60×25 laser welded tube

» Posts: CHS, RHS or RSJs, post centres depending on fence height from 2.565, 2755, 2.890, 3,000 centres.

» Fixings M12 shear nuts with loose cleats

» Finish: Galvanised and polyester powder coated to any RAL or BS colour

Our Range of Prima Self Adjusting Railing System



Self Adjusting rails are some of the lightest and most bespoke railing fence available. Adaptability is the name of the game with per-assembled panels that just bolt into place - no hassle.

Self Adjusting rails are some of the lightest and most bespoke railing fence available. Adaptability is the name of the game with per-assembled panels that just bolt into place – no hassle.

About Prima Self Adjusting Railings

Self adjusting railings follow the ground, like palisade fencing but where as palisade comes in piecemeal, these railings come is full panels that flow with ground levels with a 20 degree rake. Where as conventional railings require a stepping to avoid excessive gaps underneath, self adjusting railings follow the ground whilst remaining straight across the top, giving an attractive constant flow.


All systems use hollow section steel and are mainly bow top or vertical bars. Posts are either RSJ of round depending on the height and system.

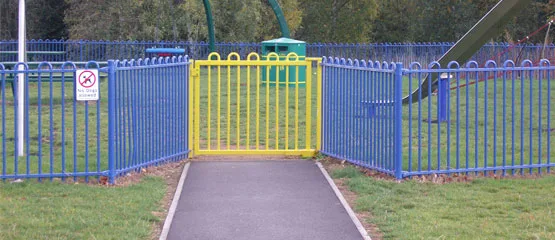

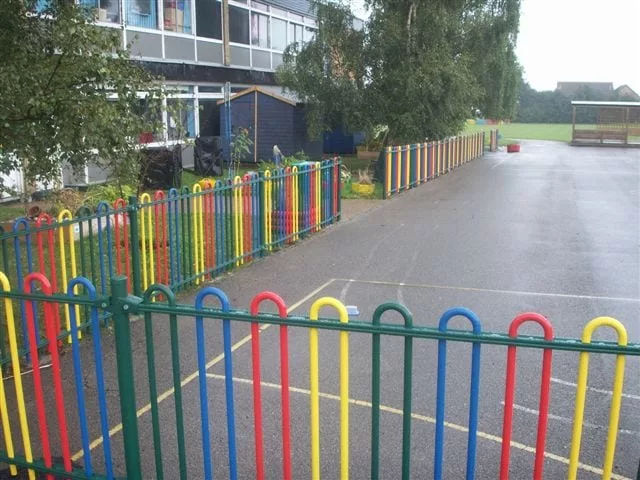

Popular with schools, the bow top systems are RoSPA approved and comply with BS1722 part 9 and BSEN1176-1 which are anti trap meaning the gaps between the bars do not exceed 86mm.



Schematic Drawings

Download the one-sheet PDF to view the complete specifications.





Sales & Quotations

Call us now on 01707 663400 for prices and information on the full range of Prima Industrial & Commercial security and perimeter fencing for installation or supply.
